Hot Water Diesel 20GPM-4000PSI,60Hp Doosan Diesel,12V,1,800,000Btu

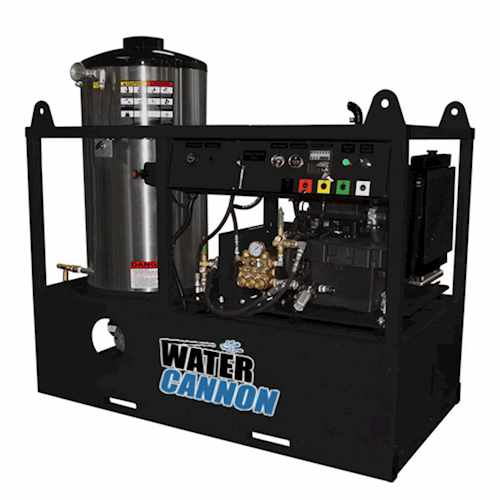

Model Shown is 27D14

This series of hot water pressure washers was designed to be truck or trailer mounted for mobile washing purposes. These units are ideal for use within municipal, mining, oil field, forestry, and industrial cleaning operations. These units can also be mounted on a skid frame in combination with 225, 550, or 740 gallon water tanks and a variety of hose reel and accessory options to create a totally customizable self-contained system.

Pumps

• Industrial Heavy Duty Triplex Plunger Pumps
• Oil Bath Crankcase

• Stainless Steel Valves
• Brass Manifold

• Thermo Pump Protector
• Belt Or Gearbox Driven

Engine ( Kohler & Kubota)

• Diesel Driven

• Efficient

• Serviceable

Heating Coil

• Schedule 80 & 160 Pipe

• Elliptically Wound & Stretched

• No Seam Welds

• Structurally Braced to Reduce Vibration & Pipe Wear

• Sealed with a Ceramic Blanket

• Stainless Steel Housing

• Optional CRN/ASME 30.1 Pressure Vessel Coded Coils

Burners (Wayne 120 Volt & 12 Volt)

• Oil Fired

• Adjustable Thermostat

• On/Off Switch
• North American Made

• Dependable

• Serviceable

Frame

• Extremely Heavy Duty 2” Square Tubing & 1/4“ Mounting Plates

• All Welded

• Powder Coated
• All Mounting Bolts are Welded to the Frame for Ease of Service

• Lifting Eye

• Fork Lift Slots
• Convenient Control Panel

• 58 HP Units (2”x4“ Steel Tubing with 1/2” Mounting Plate)

Includes

• Adjustable Pressure Regulator
• 48” Gun and Wand Assembly with Quick Coupler
 System for Machines Under 5000 PSI
• 0°/15°/25°/40° Nozzles
• 50 Feet Of High Pressure Hose

Options & Accessories

• Steam Kit

• Hose Reel
• All In One Skid & Water Tank Frames
• Open and Enclosed Trailer Packages
• Certified Lift Cages
• Electric Clutch
• Drain Cleaning/Jetter Kit
• 48 & 100 Gallon Steel Fuel Tanks
• Add (-STM) for Steam Kit
• Add (-G) for Generator & 120 Volt Burner

Specs:

20 GPM

4000 PSI

1,800,000 BTU

58 HP Kubota

Belt Drive

Vertical Unit Dimension 100L" x 36W" x 67H"

Manufacturer:	Water Cannon
SKU:	27D33
Material:	Model Shown is 27D14
PSI:	4000
GPM:	20
