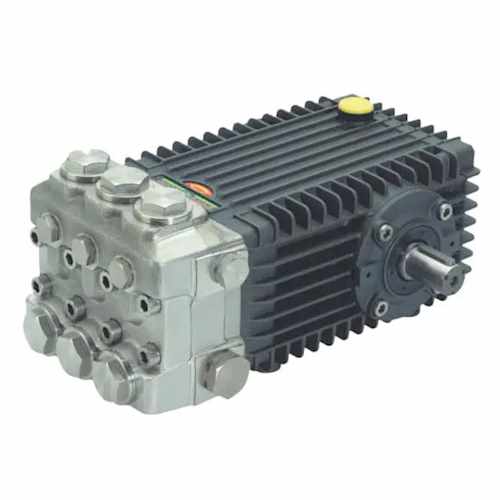

12.0GPM-2200PSI-1750Rpm-Tsf Series-Industrial Emperor Pumps

Emperor Pumps TSF Series 66 Agressive Environment Pumps TSF2021SS TSF2221SS TSF2421SS

FEATURES
• Triplex Plunger Pump
• New ceramic plunger design improves thermal shock resistance
• 316 Stainless Steel wetted parts
• 316 Stainless Steel forged manifold
• Stainless Steel inlet/outlet valve plugs with improved hydrostatic performance
• Fully anodized crankcase
• Patent-pending “high tech” low and high pressure seals
MATERIALS
• 316 Stainless Steel manifold
• 316 Stainless Steel Valve cap
• PA11 valve guide
• 316 Stainless Steel valve spring
• 316 Stainless Steel valve seat
• Solid ceramic plunger
• 316 Stainless Steel valves
COMMON SPECIFICATIONS
• Maximum Inlet Pressure: 115 PSI
• Maximum Fluid Temperature: *185° F
• Inlet Port Thread: 3/4"-14 BSP-F
• Discharge Port Thread: 3/8"-19 BSP-F
• Shaft Diameter: 0.9449"/24 mm
• Stroke: 0.8268"/21 mm
• Pump Dimensions (no rails): 13.4" x 9.83" x 6.28"
• Crankcase Oil Capacity: 40.6 oz. (1.2 liters)
• Shipping Weight: 42 lbs./19 kg
• 2200 PSI
• 1750 RPM

Helpful tips to keep your pressure washer pump operating at peak performance

California Residents - Click here for Prop 65 WARNINGS

Manufacturer:	General Pump
SKU:	TSF2421SS
Brand:	GENERAL PUMP
Drive Type:	24mm Solid Shaft
GPM:	12
Material:	Stainless Steel (SS)
Plumbing Type:	Not Included
PSI:	2200
RPM:	1750
Shaft size:	24 MM
Variant MPN:	PMP-G2124TSF-SS
