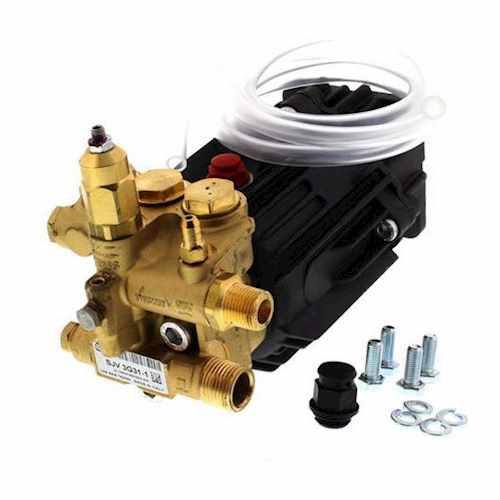

ANNOVI REVERBERI-3GPM - 2700PSI - SJV3G27D-EZ

Annovi Reverberi SJV 3400 RPM D Version 3/4" w/Gas Engine Flange Super Duty Axial Radial Drive Pump


This AR pump is designed for medium duty loads. It spins at 3400 RPM in a direct drive system. Coupled with a gasoline engine, the matching flange provides convenient connections to most 3/4" shaft, 3.5–6.5 HP engines. It features optional vertical and horizontal setups and sports a precision die-cast crankcase with large cooling fins for maximum heat dissipation. Seals and V-Packings are designed to continuously lubricate the pump for extended life. The built-in unloader will optimize performance while reducing setup time.

• Horizontal mount direct drive with gas flange 3-6.5 HP SAE (2-9/16 center to center)
• Maximum pump speed: 3,400 RPM
• Shaft diameter: 3/4” hollow
• Maximum horsepower requirements: 6.0 GHP
• Maximum fluid temperature: 140ºF.
• Inlet port: 1/2" Male
• Discharge port: 3/8" male
• Auxiliary Port: 1/4" female
• Built In unloader and chemical injector
• Forged brass head and valve covers
• Solid ceramic plungers
• Weight: 11.0 lb.

OPERATING INSTRUCTIONS & PARTS MANUAL:




Helpful tips to keep your pressure washer pump operating at peak performance

California Residents - Click here for Prop 65 WARNINGS

Manufacturer:	Annovi Reverberi
SKU:	SJV3G27D-EZ
PSI:	2700
GPM:	3
Drive Type:	3/4 Inch Hollow Shaft
Brand:	AR
RPM:	3400
Plumbing Type:	Built-In Integrated
