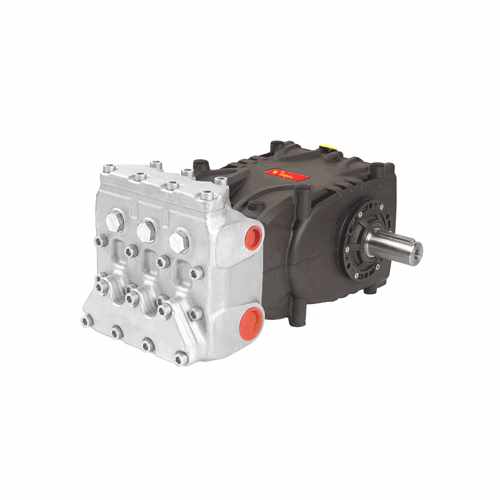

Htc 71-Triplex Plunger-Industrial Emperor General Pump

By :

  • Quick Specs
  • GPM: 40
  • PSI: 1500
Regular Price: $4,229.00
In Stock

General Pump’s HTCK4050S vs Competitor’s 3535 With an innovative and patented design that increases pump life and performance, GP easily beats its competitors as the best choice. Read on for specific part-by-part comparison.

Stronger, More Durable Connecting Rod Made from high grade forged aluminum with a removable Babbitt bearing that increases strength, efficiency, and aids in the rebuilding process.

Heavy-Duty Crankshaft Heavy-duty crankshaft and tapered roller bearings add strength to an “industrial” pump.

One Piece Manifold Made from nickel-plated brass w/stainless steel valve covers, GP’s one piece manifold eliminates washout. The competitor’s two piece design is susceptible to washout.

Patent-Pending Crankcase GP’s crankcase provides more rigidity and allows for much cooler operation of the pump. This symmetrical crankcase means the pump can be flipped upside down, allowing operator to use crankshaft on either side.

Oversized Tapered Roller Bearings Oversized, tapered roller bearings provide ease of service and extends the life of the pump.

High Efficiency Valves High Efficiency valves with stainless steel cage for superior strength compared to plastic, Poppet has patented guiding system to keep it perfectly straight for longer life, poppet has wear ring that gives the valve longer life even when damaged by solids in the water. Plus provides quieter pump operation!

General Pump has been the world leader in pressure washer triplex plunger pump development since 1982. While known as the leader in triplex plunger pumps for the pressure cleaning industry, now they have expanded into Industrial pumps rated up to 112 gallons per minute or pressures up to 21,750 PSI to serve Vehicle Wash as well as many Industrial Applications including Sewer Jetting, Oil and Gas Industries, Mining Industries, Mobile Pressure Wash, Food Industries and Exterior Building Maintenance.

Always striving to serve our customers better Water Cannon now offers the complete line of General Pumps and Industrial General Pumps at discounted prices. Water Cannon offers online discounts for volume and you can save up to 20% additional with an added bonus of free freight. General Pump’s motto; "We Will Find A Way”, now with Water Cannon’s help at discounted prices.

The Emperor 71 series triplex plunger pump is designed as a direct replacement for Cat pump's part 3535 with the distinct advantage of featuring General pump’s patented HT technology. Ideal for use in rollover car washes and other industrial plant systems where hot water is required.
• Maximum inlet pressure: 125 PSI
• Maximum fluid temperature: 185°F
• Inlet port thread: 1-1/2" NPT-F
• Discharge port thread: 1" NPT-F
• Shaft diameter: 1.575 in./40 mm
• Pump dimensions: 20.7" x 14.5" x 9.9"
• Maximum inlet vacuum: 3 ft. water (2.6 in. Hg)
• Crankcase oil capacity: 124.4 oz.
• Use GP series 100 oil

Manufacturer: General Pump
PSI: 1500
GPM: 40
Drive Type: 1.9 Inch Shaft
RPM: 800
Plumbing Type: Not Included
Shaft size: 40 MM


Drive Type: 1.9 Inch Shaft
GPM: 40
Plumbing Type: Not Included
PSI: 1500
RPM: 800
Shaft size: 40 MM
