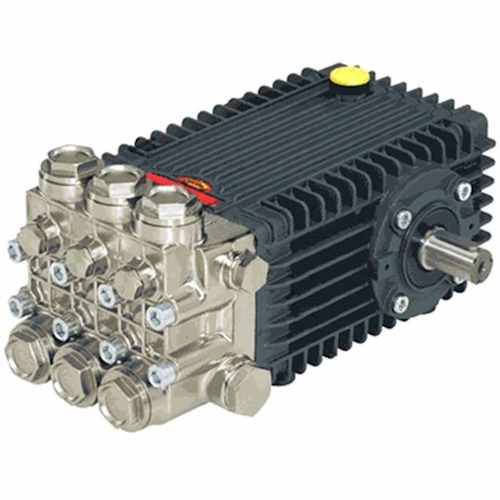

Emperor Pressure Pump High Tech packing and High Temp valve design

By :

SKU : HTF2221S
  • Quick Specs
  • GPM: 4
  • PSI: 3000
Regular Price: $1,599.50
In Stock

The Emperor HTF 66HT series triplex plunger pump is designed for use in prep units, conveyors and with multiple gun applications. This pump is excellent for carpet cleaning and for use in industrial plant systems where hot water is required.
• Maximum inlet pressure: 125 PSI
• Maximum fluid temperature: 185°F
• Inlet port thread: 3/4" - 14 BSP-F
• Discharge port thread: 3/8" - 19 BSP-F
• Shaft diameter: .945 in./24 mm
• Pump dimensions: 13.27" x 9.6" x 6.23" 13.4" x 9.8" x 7.5" (with rails)
• Maximum inlet vacuum: 9 ft. water (7.9 in. Hg)
• Crankcase oil capacity: 31 oz.
• Use GP series 100 oil



Manufacturer: General Pump
PSI: 3000
GPM: 4
Drive Type: 24mm Solid Shaft
RPM: 1750
Plumbing Type: Not Included
Shaft size: 24 MM

HTF Series (66HT) - Designed for use in prep
units, conveyor and multiple gun applications.
Excellent for carpet cleaning and for use in
industrial plant systems where hot water is

Now your equipment will work in the toughest of environments with the
Emperor line of pumps with HT technology. The Emperor line features “High Tech”
packing and “High Temp” valve design. These premium pumps can withstand
temperatures up to 185F and can run dry for several hours. The nickel-plated
manifold and valve plugs provide corrosion-resistant operation and help reduce
damage caused by cavitation.


Drive Type: 24mm Solid Shaft
GPM: 4
Plumbing Type: Not Included
PSI: 3000
RPM: 1750
Shaft size: 24 MM
