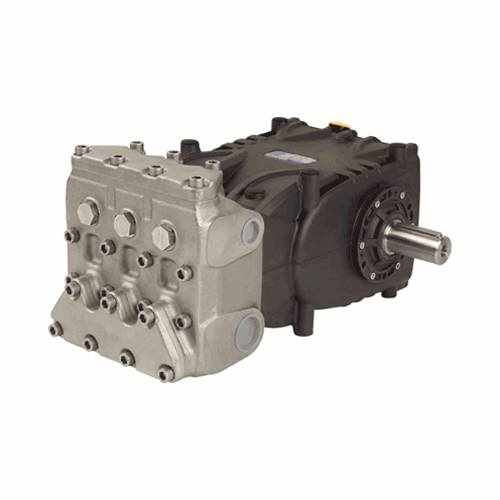

GENERAL PUMP-28GPM - 2890PSI - 1000RPM - KF30A



Emperor Pumps KF Series Industrial Pumps KF28A KF30A KF36A KF40A

Features:
• A “New Generation" Pump
• Triplex Plunger Pump, available in 4 flows
• Patent-pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion
• Low-high pressure packing design with integrated cooling system
• High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
• Splash lubrication
• SAE-C hydraulic drive bell housing flexible couplers available
• Available with external gear box (direct drive only)
Materials:
• High resistance light alloy die cast aluminum crankcase
• 420 stainless steel manifold, nickel treated
• Taper roller bearings
• Special antifriction, forged, light alloy connecting rods
• Forged alloy steel crankshaft, hardened, tempered and nitrited
• Cast iron piston guide, nickel treated
• Solid ceramic plungers
• Stainless steel valves
• Pumps are also available with 316 SS packing components. These models use prefix “KFN"

Common Specifications:
• Maximum Inlet Pressure: 45 PSI
• Maximum Fluid Temperature: 140 Degree F
• Inlet Port Thread: 1-1/2" NPT-F
• Discharge Port Thread: 1" NPT-F
• Shaft Diameter: 1.575"/40 mm
• Stroke: 1.969"/50 mm
• Pump Dimensions: 20.7" x 14.5" x 9.9"
• Crankcase Oil Capacity: 128.5 oz. (3.8 liters)
• Shipping Weight: 150 lbs./68 kg

Specs:
Manufacturer: General Pump
SKU: KF30A
PSI: 2890
GPM: 8
Brand: GENERAL PUMP
RPM: 1000
Shaft size: 40 MM

Manufacturer:	General Pump
SKU:	KF30A
Brand:	GENERAL PUMP
GPM:	8
PSI:	2890
RPM:	1000
Shaft size:	40 MM
Variant MPN:	PMP-G30KF
