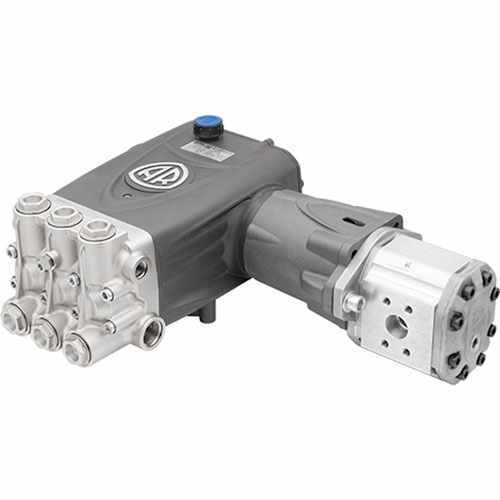

HYD-RTX50-AR-13.2GPM-2900PSI-Hydraulic Driven Pumps

Motor - Sauer Danfass | 3/4” Inlet and Outlet | Pump - 1” F Inlet and 1/2”F Outlet

Hydraulic Pressure Washer

When using a hydraulic pressure washer, it's essential to understand two key specifications: Hydraulic Gallons Per Minute (GPM) and Hydraulic Pounds per Square Inch (PSI).

These measurements determine how effectively the washer operates and should not be confused with the pumps high pressure water and flow performance.

For optimal performance, the RTX50 Pump requires:

• Hydraulic Fluid Flow Rate: 18.5 GPM
  This means the pump needs 18.5 gallons of hydraulic fluid to flow through it every minute.

• Hydraulic Pressure: 2320 PSI
  The pump operates at a pressure of 2320 pounds per square inch.

Specs:

Max GPM 13.2
Max L/Min 50
Max PSI 2900
MaxBar 200
Inlet 1" F
Outlet 1/2" F
RPM 1450
Motor Max GPM 18.5
Motor Max L/Min 70
Motor Max PSI 2320
Motor Max Bar 160
Motor Inlet 3/4"
Motor Outlet 3/4"

RTX-Series-Pumps.pdf

Manufacturer:	Annovi Reverberi
SKU:	HYD-RTX50
Brand:	AR
GPM:	13.2
PSI:	2900
RPM:	1450
Variant MPN:	HYD-RTX50
