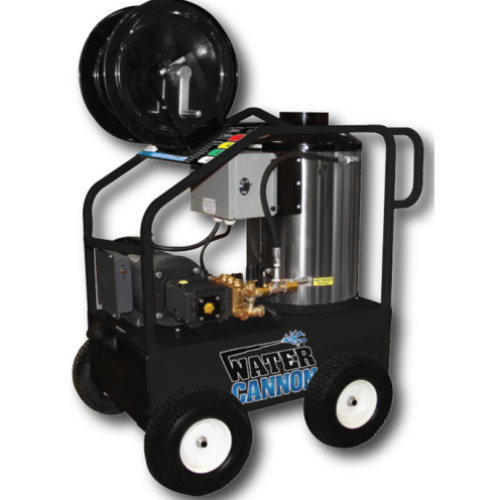

Hot Water 3.5GPM 2400PSI 5Hp/230V/1Ph-150Ft Hose Reel-100Ft Hose

By : Water Cannon

SKU : 18M05
  • Quick Specs
  • GPM: 3.5
  • PSI: 2400
Regular Price: $4,342.45
In Stock
Quantity:
Description

INCLUDES A FREE FACTORY INSTALLED 150 FOOT CAPACITY HOSE REEL (as shown) and UPGRADED to a 100 HOSE with QUICK CONNECTS

Battery Specifications - 12 Volt Rating 165 Cold Crank Amps – 190 Cranking Amps – Deep Cycle - Marine Grade Rechargeable Battery

Dimensions of Battery Box 8” x 5” x 6”

Commercial hot water electric powered units are portable and fully featured. Models available in 11 OV & 220 V configurations. A choice of pressure and flows deliver the performance you need and expect. Units can be factory outfitted with optional auto start and stop with time delay, hose reel and more. Call our industry expert customer service team to learn more.

Pump

  • Commercial Duty Triplex Plunger Pumps
  • Oil Bath Crankcase
  • Stainless Valves
  • Brass Manifold
  • Direct Drive
  • Thermo Pump Protector

Electric Motor

  • 1750 RPM. TEFC
  • Full Frame
  • 1.15 Service Factor
  • Thermal Overload Protection
  • Continuous Duty

Electrical Control Panel

  • Nema 4
  • Water Tight
  • Easy Access
  • Heavy Duty On / Off Cam Switch
  • Auto Stop/ Start with Time Delay Optional

Heating Coil

  • Schedule 80 Pipe
  • Elliptically Wound & Stretched
  • No Seam Welds
  • Structurally Braced to Reduce Vibration & Pipe Wear
  • Sealed with Ceramic Blanket
  • Stainless Steel Housing

Wayne Burners

  • Oil Fired
  • Adjustable Thermostat
  • On/Off Switch
  • North American Made
  • Dependable
  • Serviceable

Frame

  • All Frame Welded
  • Powder Coated
  • 12 Gauge Bent Steel Roll Cage
  • Lifting Bar
  • 3/4" Threaded Axles Welded to Frame
  • 13" Pneumatic Wheels Attached with Lock Nuts
  • 10 Gallon Poly Fuel Tank
  • Hose Reel Mounting Plate with 150 Foot Capacity Hose Reel Factory Installed
  • Rear Wheel Brake Lock

Includes

  • 36" Gun and Wand Assembly with Quick Coupler System
  • 0, 15, 25 and 40 Degree Nozzles
  • 1 Soap Nozzle
  • Downstream Chemical Injection System
  • 100 Feet of High Pressure Hose

Options & Accessories

  • Auto Stop/Start
  • Rotary Nozzle
  • Wet Sandblast Kit
  • Water Broom
  • Drain Cleaning / Jetter Kit
  • Call for Options

Dimensions: 44.5 L x 30 W x 44 H

California Residents - Click here for Prop 65 WARNINGS

Specifications

Manufacturer: Water Cannon
SKU: 18M05
Cold or Hot Water: Hot Water
Drive Type: Direct Drive
GPM: 3.5
PSI: 2400
Volts-Phase: 5HP/220V - 1 Phase
